After Upgrading my mobile from SailfishOS 3.3.??? to 4.1.??? it figured out, that I've missed a backup with the OS tools. I've had only a backup of the filesystem. Restoring most of the relevant information was simple. So it was no problem to get my Phonecalls, Messages and also Notes back. Only two things didn't work. Contacts and Calendar. Allthough I can ignore my Calendar for the moment, also my contacts went away due to the fact, that there was a DB Schema change.

Luckily it was possible to start an emulator with OS 3.2.??? and restore the contacts within that emulator *but*, all tryes to restore the data with Backuptools on that emulator or CalDav syncing or vcardconverter on OS level failed. For whatever reason it was not possible to restore that data.

My Solution here is to restore the data with a python script, exporting it from the Sqlite database to .vcf (vCard File).

This only works for DB Structures of SailfishOS and was especially tested with DBs of OS version 3.2.X and 3.3.X

Install following Python Modules from PyPi

• vObject
• sqlite3
• uuid

Help

$ ./ContactRestore.py --help
usage: ContactRestore.py [-h] --db DB --output OUTPUT [--outsinglefile OUTSINGLEFILE] [--avatars AVATARS] [--debug]
                         [--version]

Restore SailfishOS 3 Contacts

optional arguments:
  -h, --help            show this help message and exit
  --db DB, -d DB        Sqlite3 Database file usually /home/{nemo,defaultuser}/.local/share/system/Contacts/qtcontacts-
                        sqlite/contacts.db
  --output OUTPUT, -o OUTPUT
                        Output directory for vcf files.'
  --outsinglefile OUTSINGLEFILE, -f OUTSINGLEFILE
                        If specefied, a file with that name is created under specified path, contianing all VCard
                        entrie. E.G. your address book
  --avatars AVATARS, -a AVATARS
                        Avatar directory. If present otherwise we skip this block of avatars, means, no avatars at all
  --debug               debugging output to identify problems
  --version             show program's version number and exit

This script was written to restore SailfishOS 3 contacts as VCF files. To see additional information, visit:
https://wiki.siningsoft.de/doku.php?id=sailfishos:projects:sailfish_contacts_rescue

Execution

$ ./ContactRestore.py -d Testdata/contacts_with-Phone-Mobile-Fax-Pager-Assistent-Addresses.db -o Testdata/Output/
exporting SiSo Emulator to file Testdata/Output//SiSo_Emulator.vcf
exporting TestUserFirstName TestUserLastName to file Testdata/Output//TestUserFirstName_TestUserLastName.vcf
exporting 2nd Test *FN* User *LN* to file Testdata/Output//2nd_Test_*FN*_User_*LN*.vcf
exporting Phone Test to file Testdata/Output//Phone_Test.vcf
exporting Ludowig Adressuser to file Testdata/Output//Ludowig_Adressuser.vcf

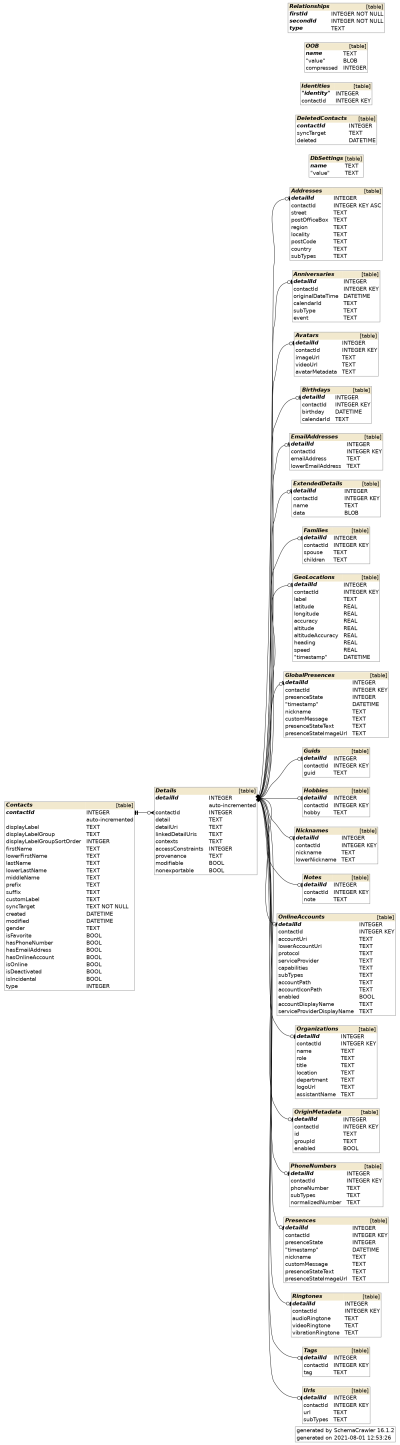

The database is missing a table with subTypes to identify entries in Addresses. To have a reference, here is a list of Types

The Phonenumbers are listed in table PhoneNumbers with details from table Details. Most interesting here is the type of number. Which is stored in table PhoneNumbers column subTypes.

Here is an example:

The database is missing a table with subTypes to identify entries in PhoneNumbers for example. To have a reference, here is a list of Types

Definition from RFC:

 +-----------+-------------------------------------------------------+
 | Value     | Description                                           |
 +-----------+-------------------------------------------------------+
 | text      | Indicates that the telephone number supports text     |
 |           | messages (SMS).                                       |
 | voice     | Indicates a voice telephone number.                   |
 | fax       | Indicates a facsimile telephone number.               |
 | cell      | Indicates a cellular or mobile telephone number.      |
 | video     | Indicates a video conferencing telephone number.      |
 | pager     | Indicates a paging device telephone number.           |
 | textphone | Indicates a telecommunication device for people with  |
 |           | hearing or speech difficulties.                       |
 +-----------+-------------------------------------------------------+

    The default type is "voice".

Allthough it wasn't specified by python vobject lets assume we've to use VCard specification by RFC6350.

• great Fileformat description: https://de.wikipedia.org/wiki/VCard
• FileFormatdescription: https://docs.fileformat.com/email/vcf/#vcf-30-example
• Python vobject: http://eventable.github.io/vobject/
• vobject Code documentation: http://vobject.skyhouseconsulting.com/epydoc/
• https://datatracker.ietf.org/doc/html/rfc6350

1. fotos
2. birthday
3. missing parameters for names
4. URL with parameters

The sourcecode is located under svn://svn.siningsoft.de/Sailfish_Contacts_Restore. A free read access via svn will follow. If you're interested in submitting code as part of the development, a read/write access could be requested via sailfish@siningsoft.de
